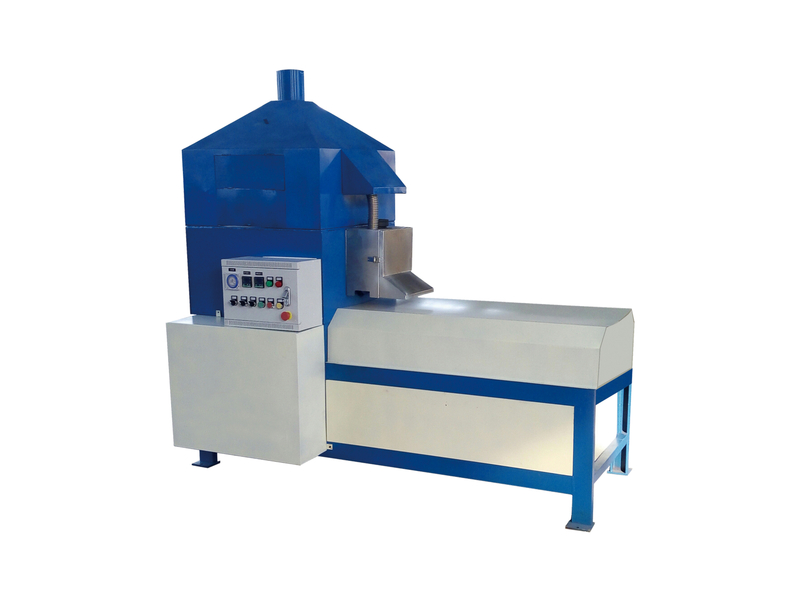

The machine is specially designed for automatic production of lead-bar in battery industry, which is applicable for large-density rechargeable battery electrode group welding, polar plate forming bus bar connection etc in automobile, stored energy, UPS. The lead-bar shape can be trapezoid, triangle, semicircle and other commonly used. The equipment operation is simple, which can assembly and produce the product in a single day, a worker can operate two or three lead-bar machines at the same time.
According to the design, 3-12 bars can be produced per minute, the length depends on the designed mould. The maximum lead bar of standard machine is 500mm
2 、 Working voltage:AC380±5% 50Hz
3 、There is no air source and no cylinder, the complete mechanical design is reasonable and simple
4 、 Power : Lead Furnace 27kw(3kw×9 numbers支)
Lead Tank 4 kw
Motor 2.5 kw
5 、Lead Furnace Capacity:1.1 tons
6、 Production efficiency: calculated at an average weight of 1.5kg for each bar
1.5*6*60mins=540kg/hr
7、 Environmental protection cover is designed for lead furnace and lead tank, the air intake is reserved and the design is according to environmental protection requirements.
